PTG TECHNICAL BULLETIN #2
REGULATION
© 1992 & 1994 The Piano Technicians Guild, Inc.
[ Visit the PTG Web Site ]
[ Additional Bulletin Credits ]
What is regulation and how does it affect my piano's
performance?
If I have my piano tuned regularly, why do I need to have it
regulated?
Do all pianos need to be regulated?
How often is regulation needed?
What are the signs that my piano needs regulation?
Why is reconditioning or rebuilding sometimes necessary
prior to regulation?
As a conscientious piano owner, you probably have your piano tuned regularly
by a qualified technician. You may, however, notice a deterioration of its
performance despite regular tuning. It's important to note that tuning is
only the adjustment of the system of strings and pins that determines the
pitch of each string. Your piano also requires a periodic servicing called
regulation, which attends to the mechanical parts which cause strings to
sound when keys are played and affect the sound through use of the pedals.
What is regulation and how does it affect my piano's performance?
Regulation is the adjustment of the mechanical aspects of the pianos to compensate for the effects of wear, the compacting and settling of cloth, felt, and buckskin, as well as dimensional changes in wood and wool parts due to changes in humidity.
The three systems involved in regulation are the action trapwork and damper
system. The action is the mechanical part of the piano that transfers the
motion of the fingers on the keys to the hammers that strike the strings.
It is comprised of over 9,000 parts which require adjustment to critical
tolerances to be able to respond to a pianist's every command. The trapwork
is the assemblage of levers, dowels and springs that connects the pedals
to the action affecting sustain and dynamics. The damper system is the mechanical
part of the piano that stops the vibration of the string when you release
the key and is controlled by the key and pedal systems.
Go to top
If I have my piano tuned regularly, why do I need to have it regulated?
While tuning corrects the pitch of your piano, it is only one component of a complete maintenance program. Regulation attends to the touch and uniform responsiveness of your action, all vital to making each performance pleasurable. In addition, regulation ensures that your instrument is capable of producing a wide dynamic range -- a critical factor, particularly in pianissimo passages.
Music is one of the most complex vehicles for expression. Its beauty is reliant
upon personal dynamics and tempi. These changes require extremely fine
adjustments to respond to the pianist's nuances and subtle shadings. A smooth,
even response throughout the entire range of the keyboard and an extremely
quick action capable of playing rapid passages and repeated notes evenly
is essential. Outstanding response is essential for a pianist to create an
outstanding performance.
Go to top
Do all pianos need to be regulated?
All upright and grand pianos need periodic regulation to perform their best.
Frequency of regulation is dependent upon amount of use, exposure to climatic
changes, and the instrument's quality, age and condition. New pianos may
require regulation in their first year because settling and compacting of
parts sometimes necessitates adjustment.
Go to top
How often is regulation needed?
Only you and your technician together should decide how frequently your piano needs regulation. Several factors can contribute to this. The intensity and number of hours your instrument is played, and climatic conditions are all determinants. A piano kept in relatively consistent conditions which are neither too wet nor dry, optimally at a temperature of 68 degrees Fahrenheit and 42 percent relative humidity, will require less adjustment.
The quality of the instrument itself also can affect frequency of regulation. Some manufacturers decrease costs by not going over the regulation and voicing processes in the factory as much as needed. Reputable retailers sometimes do the necessary regulation themselves prior to selling the pianos, but others do not.
Also, performance instruments may require some regulation before each use,
due to the higher demands placed on them.
Go to top
What are the signs that my piano needs regulation?
If you instrument displays a lack of sensitivity or a decreased dynamic ranges, it's a candidate for regulation. If you notice that the keys are not level (some higher or lower than the rest), the touch is uneven or that the keys are sticking, the need for regulation is indicated. However, a sluggish action or deep grooves in the hammers indicate the need for reconditioning or repair. Ask your technicians to show you what needs adjustment on your piano.
No amount of practice can compensate for a poorly maintained action. Poor
legato touch, chord playing where all notes of the chord don't speak clearly,
a gradual loss of subtlety in phrasing and an inability to execute quick
passages or note repetitions evenly may be the fault of the piano -- not
the player.
Go to top
Why is reconditioning or rebuilding of the mechanical systems sometimes necessary prior to regulation?
Prior to regulation, your technician will assess the condition of your instrument. If it has badly worn parts or if there has been corrosion or moth damage, the piano may not be able to be properly regulated without some repair or replacement of parts.
Reconditioning is the process of putting your piano back in good condition by cleaning, repairing, and adjusting your instrument for maximum performance with replacement parts only where specifically indicated. If you piano has deteriorated beyond simple reconditioning, it may need to be rebuilt.
Rebuilding involves complete disassembly, inspection and repair as necessary with replacement of all worn or deteriorated parts. The piano is then reassembled, tested and adjusted to the same or similar tolerance and performance as when it was new.
Your piano is a major investment which deserves to be protected through regular
servicing by a qualified technician. Properly maintained, your piano will
sound its best and give you and your family a lifetime of enjoyment.
Go to top

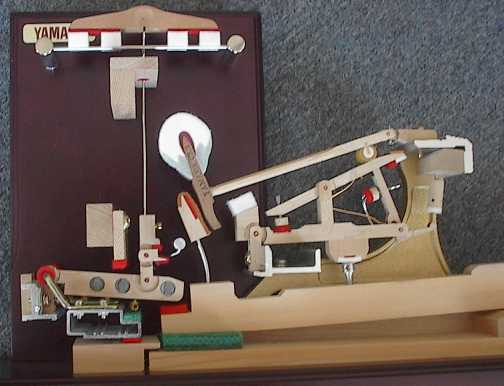

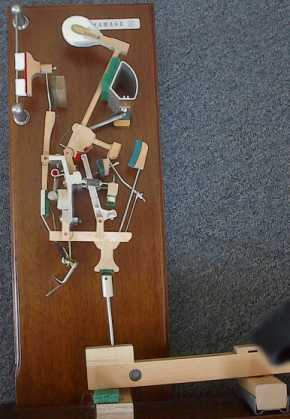

For technical drawings of a Vertical and Grand Piano action click below:
The preceding article is a reprint of Technical Bulletin #1 published by the Piano Technicians Guild, Inc. It is provided on the Internet as a service to piano owners.
Piano Technicians Guild is an international organization of piano technicians. Registered Piano Technicians (RPTs) are those members of PTG who have passed a series of examinations on the maintenance, repair, and tuning of pianos.
For a copy of this or other PTG Bulletins and Pamphlets, or a list of PTG members in your area, vist the PTG web site or contact Piano Technicians Guild, Inc., 4444 Forest Ave, Kansas City, KS, 66106. Ph: (913) 432-9975 Fax: (913) 432-9986 E-mail ptg@ptg.org
©
